HW1000 柴油雙把數字靜音發電焊機 | Diesel generator welder

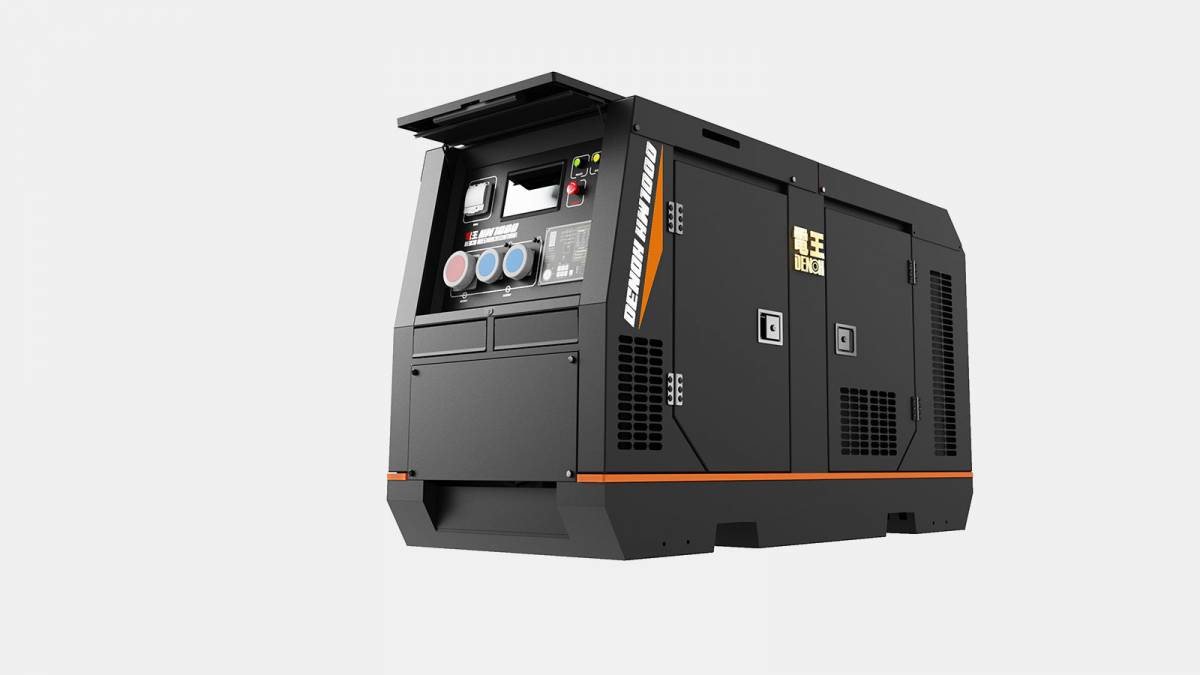

HW1000D 柴油雙把數字靜音發電電焊機 | Diesel generator welder
- 產品優勢 | Product Advantage
- 具備優異的省油性能
- Has excellent performance of fuel saving
- 裝備了獨特的智能油門
- Equipped with a unique smart throttle
- 可根據負載實際變化狀況來自動調節轉速的高低
- The speed can be automatically adjusted according to the actual change of the load
- 燃油耗比普通機組低20%
- Fuel consumption is 20% lower than that of ordinary units
- 節能主要體現在變速恒壓發動機焊機上
- Energy saving is mainly reflected in the welding machine of variable speed and constant voltage engines
HW1000-EW性能參數配置/Specification of HW1000-EW
|
|
碳刷/Excitation |
數字無刷變速/No |
驅動方式/Driven |
直接耦合/Direct coupling |
防護等級/Protection
class |
IP23S |
絕緣等級/Insulation class |
H |
焊接輸出/Descending Output
|
|
額定功率/Rated power |
20C×2 KW |
額定電流/Rated current
|
500×2 DCA |
額定電壓/Rated voltage |
40 DCV |
空載電壓/Idle voltage
|
85 DCV |
額定使用率/Rated duty cycle |
60% |
電流調節范圍/Current
range control |
（45-500)×2 A |
平特性/(CV) Output
|
|
空載電壓/Idle voltage |
85 V |
額定功率/Rated duty cycle |
16.4×2 KW |
額定電流 /Rated current |
450×2 A |
額定功率/Rated duty cycle |
16.4×2 KW |
電壓調節范圍/Current range control |
15~36.5 V |
額定使用率/Rated duty cycle |
80% |
輔助電輸出/Accessorial Receptacle |
|
額定功率/Rated power |
20 KVA |
額定電壓 /Rated duty cycle |
380V(AC) |
輔助電額定電流/Rated current
|
30 A |
頻率/Rated duty cycle Hz |
50 |
發動機/Engine |
|
品牌型號/Model |
濰柴/WEICHAI |
類型/Type |
四沖程四缸/4-stroke, 4-cylinder |
排氣量/Displacement |
3.0-4.1L |
額定輸出功率/Rated output
power |
35-103 KW |
額定轉速/Rated speed |
900-1800 rpm |
啟動方式/Starting
system |
電啟動/Electric |
燃料/Fuel |
柴油/Diesel |
冷卻方式/Cooling
system |
水冷/Water-cooled |
其它/Others |
|
油箱容量/Fuel tank capacity |
90 L |
外形尺寸/Dimension
(L×W×H) |
2070×900×1234 mm |
重量/Net weight |
1500 Kg |
噪音/Noise |
71db(7m) |
