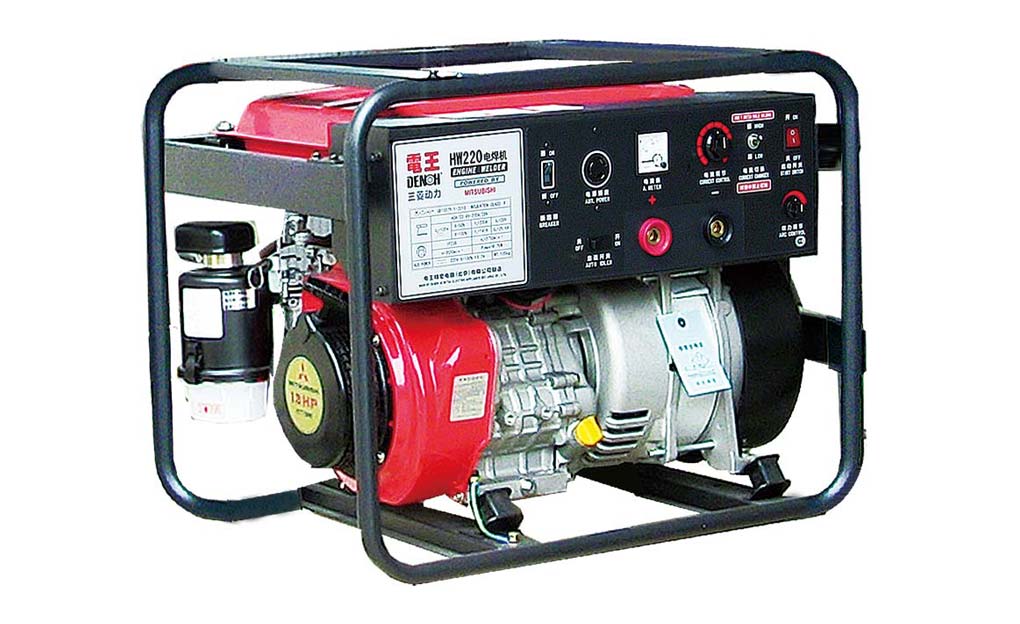

HW220 200A汽油發電焊機 | 200A Gasoline generator welder

HW220EW產品優勢 |HW220EW Product Advantage
* 適用多種焊條,，可以施行纖維素焊條,、低氫焊條及氬弧焊的全位置焊接。
* 無刷,、誘導子發電技術,。
* 具有電弧吹力調節功能,，電弧穩定,、飛濺小。
* 配有省油電磁閥,。
* for a variety of welding rod, can well celluloseelectrode, Low hydrogen electrode and argon arc welding of all position welding.
* brushless, elicitor power generation technology,high power generation efficiency.
* with arc blow force regulating function, arc stability, little splash.
* equipped with fuel solenoid valve with high efficiency of welding machine Than any other brand 40% energy saving equipment.

HW220EW性能參數配置/Specification of HW220EW
碳刷/Brush	無/No
驅動方式/Driven	直接耦合/Direct coupling
防護等級/Protection class	IP21
絕緣等級/Insulation class	F
焊接輸出/Descending Output
額定功率/Rated power	5.6 KW
額定電流/Rated current	200 DCA
額定電壓/Rated voltage	28 DCV
空載電壓/Idle voltage	85 DCV
暫載率/Rated duty cycle	50%
焊接電流調節范圍/Current range control	（50-230）DCA
輔助電輸出/Accessorial Receptacle
額定功率/Rated power	3.0 KW
額定電壓/Rated voltage	220 DCV
輔助電額定電流/Rated current	13.7 A
暫載率/Rated duty cycle	100%
發動機/Engine
型號/Model	三菱/MITSUBISHI GT1300
類型/Type	四沖程單缸/4-stroke, 1-cylinder
排氣量/Displacement	391 CC
額定功率/Rated output power	13 HP
額定轉速/Rated speed	3580 rpm
啟動方式/Starting system	手啟動/Recoil
燃料/Fuel	無鉛汽油/Unleaded gasoline
冷卻方式/Cooling system	風冷/Air cooling
其它/Others
油箱容量/Fuel tank capacity	12 L
外形尺寸/Dimension (L×W×H)	707×530×560 mm
重量/Net weight	105 Kg
車輪/Wheel kit	選配/option
