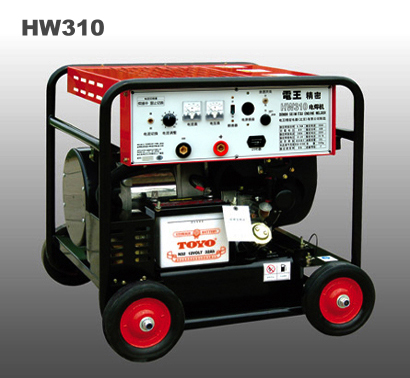

HW310EW 汽油300A發電電焊一體機 | 300A Gasoline generator welder

產品優勢 | Product Advantage
* 采用高低檔電流選擇開關,，無需停機插拔快速插頭的繁瑣過程。
* 無刷,、誘導子發電技術,。
* 具有電弧吹力調節功能，電弧穩定,、飛濺小,。
* 可連續長時間使用纖維素下向焊、氬弧焊等多種焊接方式,。
* Brushless, elicitor power generation technology,high power generation efficiency.
* with arc blow force regulating function, arc stability, little splash.
* Automatically according to the electricity situation acceleration and deceleration, fuel-efficient more.

HW310EW性能參數配置/Specification of HW310EW
碳刷/Brush	無/No
驅動方式/Driven	直接耦合/Direct coupling
防護等級/Protection class	IP21
絕緣等級/Insulation class	F
焊接輸出/Descending Output
額定功率/Rated power	8.7 KW
額定電流/Rated current	280 DCA
額定電壓/Rated voltage	31.2 DCV
空載電壓/Idle voltage	85 DCV
暫載率/Rated duty cycle	50%
焊接電流調節范圍/Current range control	（60-310）DCA
輔助電輸出/Accessorial Receptacle
額定功率/Rated power	3.0 KW
額定電壓/Rated voltage	220 DCV
輔助電額定電流/Rated current	13.7 A
暫載率/Rated duty cycle	100%
發動機/Engine
型號/Model	科勒/KOHLER CH20S
類型/Type	四沖程雙缸/4-stroke, 2-cylinder
排氣量/Displacement	624 CC
額定功率/Rated output power	20 HP
額定轉速/Rated speed	3580 rpm
啟動方式/Starting system	電啟動/Electric
燃料/Fuel	無鉛汽油/Unleaded gasoline
冷卻方式/Cooling system	風冷/Air cooling
潤滑油容量/Lucrative capacity	1.55 L
其它/Others
油箱容量/Fuel tank capacity	20 L
外形尺寸/Dimension (L×W×H)	730×620×718 mm
重量/Net weight	165 Kg
電池/Battery	12V-32AH
車輪/Wheel kit	標配/standard
