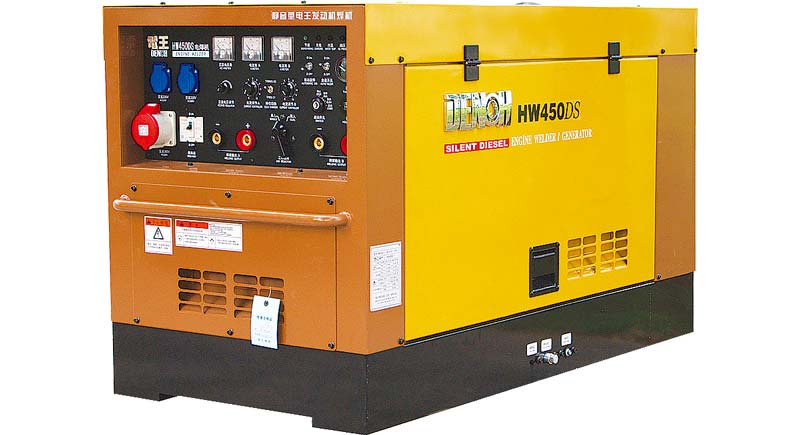

400A柴油雙把靜音發電電焊機 | 400A Diesel silence double generator welder

產品優勢 | Product Advantage

* 滿足國內野外管道施工作業的焊接要求,。
* 具有節能裝置可以實現自動停起功能,。
* 具有雙把手工焊同時焊接互不干擾的特點,。
* 高配機型具有單把半自動藥芯自保護焊接功能,。
* 發動機容量?jī)?nèi)，焊接與380V交流電可以同時使用,。
* According to the requirements of the China's pipeline construction welding, on the basis of the original design has greatly improved the welding performance.
* Energy saving devices have automatic stopping and starting function.
* 2 welding joint welding function.
* Self-preservation welding function.
* Welding and ac output can be used at the same time.

HW450DS-EW性能參數配置/Specification of HW450DS-EW
碳刷/Excitation	無/No
驅動方式/Driven	直接耦合/Direct coupling
防護等級/Protection class	IP23
絕緣等級/Insulation class	F
焊接輸出/Descending Output
額定功率/Rated power	12.38 KW
額定電流/Rated current	360 DCA
額定電壓/Rated voltage	34.4 DCV
空載電壓/Idle voltage	80 DCV
暫載率/Rated duty cycle	50%
焊接電流調節范圍/Current range control	單人 Single(60-400) DCA
	雙人 Double(30-200)×2 DCA
輔助電輸出/Accessorial Receptacle
額定功率/Rated power	15.0 KW
額定電壓/Rated voltage	380 DCV
輔助電額定電流/Rated current	21.7 A
暫載率/Rated duty cycle	80%
發動機/Engine
型號/Model	久保田/Kubota D1105
類型/Type	四沖程三缸/4-stroke, 3-cylinder
排氣量/Displacement	1123 CC
額定功率/Rated output power	29.5 HP
額定轉速/Rated speed	3000 rpm
啟動方式/Starting system	電啟動/Electric
燃料/Fuel	柴油/Diesel
冷卻方式/Cooling system	水冷/Water-cooled
其它/Others
油箱容量/Fuel tank capacity	37 L
外形尺寸/Dimension (L×W×H)	1530×710×865 mm
重量/Net weight	510 Kg
電池/Battery	12V-48AH
