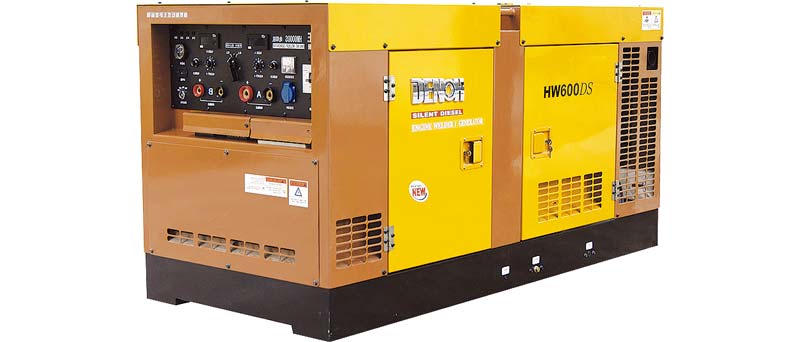

HW600DS 柴油600A發電電焊一體機 | 600A Diesel generator welder

600A柴油雙把靜音發電電焊一體機 | 600A Diesel generator welder

產品優勢 | Product Advantage
* 具有雙把同時焊接互不干擾的功能,。
* 20KW輔助電源,，同時為多種工具提供電源輸出。
* 轉子采用整塊具有良好導磁性能,、高牌號,、溫升小,、效率高的硅鋼片切割后疊壓而成,。
* 超大油箱79L，讓燃油儲備充足,，續航時間更久,。
* On the basis of the original design has greatly increased the welding performance
* 20 kw auxiliary power field electric tools.
* The rotor adopts the whole has the good permeability of high strength alloy steel forging
* Big tank of 79 L, sufficient fuel reserves.

HW600DS-EW性能參數配置/Specification of HW600DS-EW
類型/Type	無刷/Brushless
驅動方式/Driven	直接耦合/Direct coupling
防護等級/Protection class	IP23
絕緣等級/Insulation class	F
焊接輸出/Descending Output
額定功率/Rated power	18.3 KW
額定電流/Rated current	580 DCA
額定電壓/Rated voltage	31.6 DCV
空載電壓/Idle voltage	80 DCV
暫載率/Rated duty cycle	60%
焊接電流調節范圍/Current range control	(60-300)×2 DCA
輔助電輸出/Accessorial Receptacle
額定功率/Rated power	20.0 KW
額定電壓/Rated voltage	380 DCV
發動機/Engine
型號/Model	三菱/Mitsubishi S4S
類型/Type	四沖程四缸/4-stroke, 4-cylinder
排氣量/Displacement	3331 CC
額定功率/Rated output power	38 HP
額定轉速/Rated speed	1500 rpm
啟動方式/Starting system	電啟動/Electric
燃料/Fuel	柴油/Diesel
冷卻方式/Cooling system	水冷/Water-cooled
其它/Others
油箱容量/Fuel tank capacity	79 L
外形尺寸/Dimension (L×W×H)	2000×900×1000 mm
重量/Net weight	900 Kg
