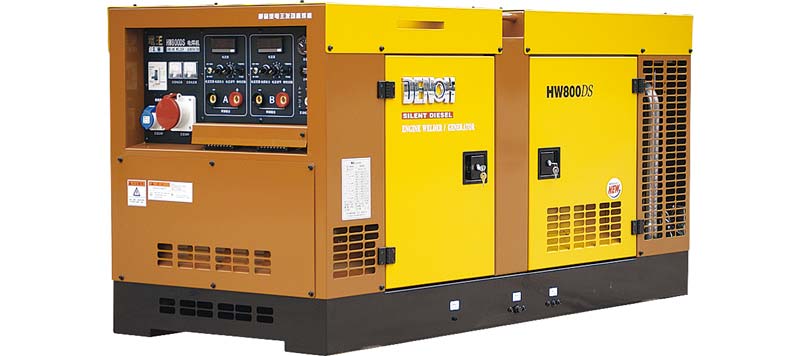

HW800DS-EW 400A×2柴油靜音發電電焊機 | 400A×2 Diesel generator welder
HW800DS-EW 400A×2柴油靜音發電電焊機 | 400A×2 Diesel generator welder
- 產品優勢 | Product Advantage
- * HW800DS-EW雙把手工電弧焊可滿足普通焊條,、纖維素焊條等多種焊條的使用,，并可實現雙把簡易氬弧焊接功能,。
- * 實現雙把半自動藥芯自保護焊接功能,。
- * HW800DS搭載道依茨柴油發動機，采用誘導子無刷焊接發電一體技術及其控制系統,。
- * 低噪音靜音設計,。
- * Satisfy the use of a variety of electrode 2people at the same time welding, semiautomatic welding cored pipe welding,argon arc welding.
- * 30 kw auxiliary power field electric tools.
- * Way in accordance with the diesel engine and control system.
- * In field welding operations,show superior ability Electricity current stability is strong, main equipment of pipe welding.
HW800DS-EW性能參數配置/Specification
of HW800DS-EW
|
|
類型/Type |
無刷/Brushless |
驅動方式/Driven |
直接耦合/Direct coupling |
防護等級/Protection
class |
IP23 |
絕緣等級/Insulation class |
F |
下降特性輸出/Descending Output
|
|
額定功率/Rated power |
13.4×2 KW |
額定電流/Rated current
|
380×2 DCA |
額定電壓/Rated voltage |
35.2 DCV |
空載電壓/Idle voltage
|
85 DCV |
暫載率/Rated duty cycle |
60% |
平特性輸出/Welder Output |
|
額定焊接電壓/Open-circuit Voltage |
22～43 CV |
| 暫載率/Rated Duty Cycle | 80 % |
額定電流/Rated Current
|
350×2 DCA |
輔助電輸出/Aux. power |
額定功率/Rated Power |
30 KW |
額定電壓/Rated Voltage
|
380 ACV |
發動機/Engine |
|
型號Model |
道依茨/DEUTZ TD226B |
類型/Type |
四沖程三缸/4-stroke,3-cylinder |
排氣量/Displacement
|
3120 CC |
額定功率/Rated Output |
45 KW |
轉速/Rated Speed
|
1500 rpm |
冷卻方式/Cooling System |
水冷/Water-cooled |
燃料/Fuel |
柴油/Diesel |
啟動方式/Starting
System |
電啟動/Electric |
其它/Others |
|
油箱/Fuel Tank Capacity |
79 L |
外形尺寸/Dimensions |
2000×900×1000 mm |
重量/Dry Weight
|
1200 Kg |
